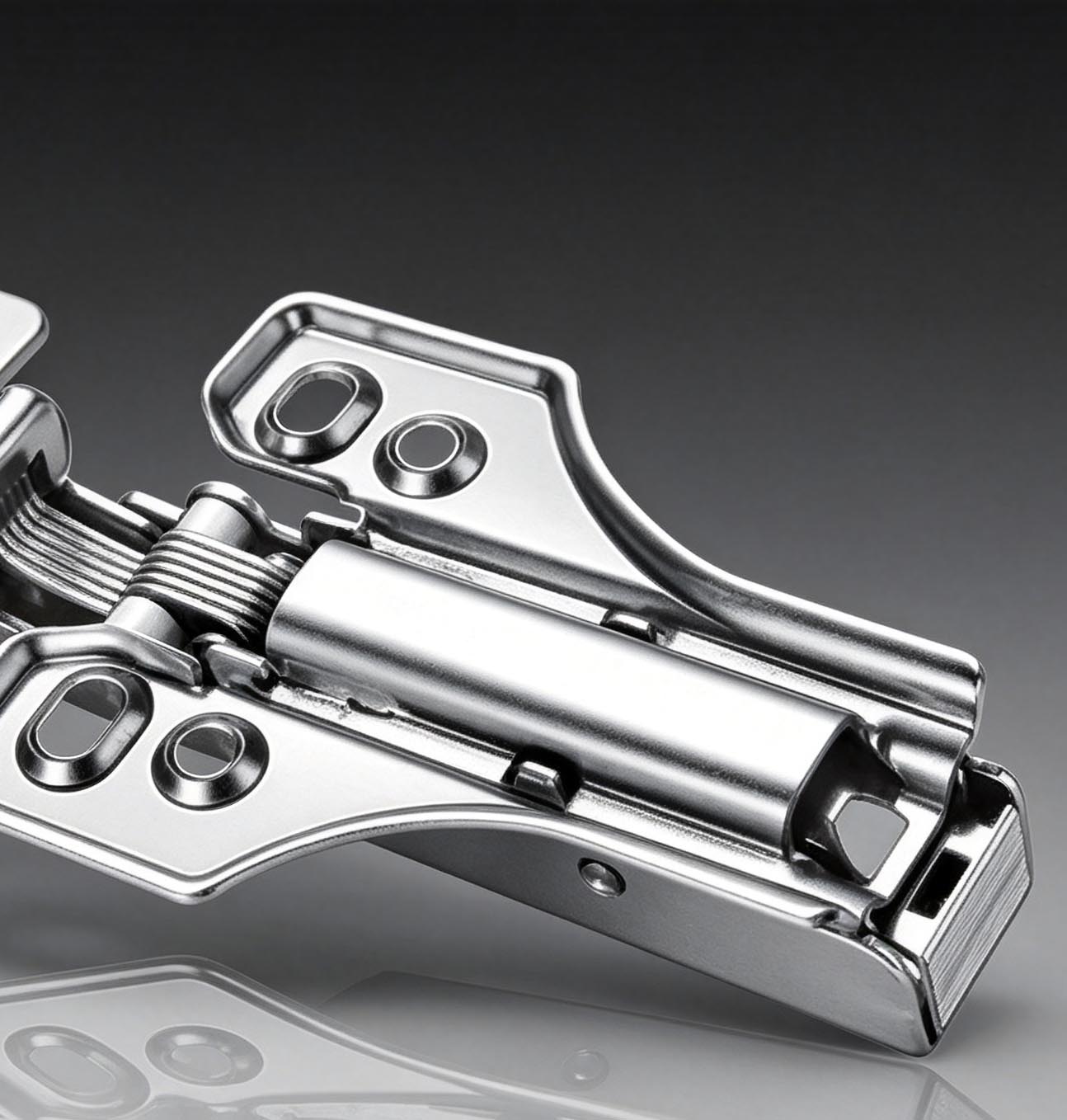

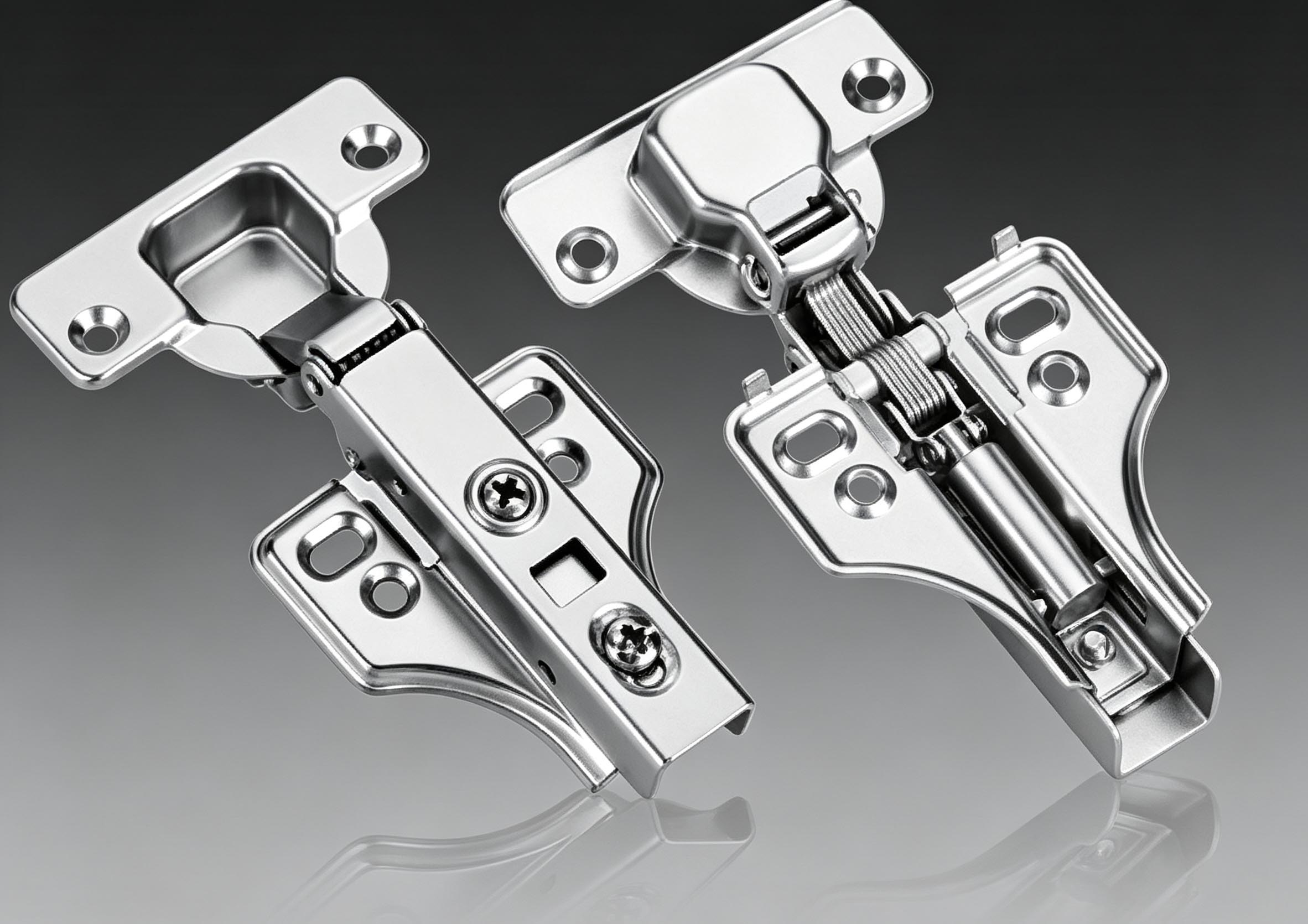

FB208 Hydraulic Soft Close Clip-on Hinge
Support self-tapping screw & European screw, matching M10 rubber plug for cabinet installation
| Material | Cold Rolled Steel, Nickel Plated |
| Net Weight | 105g per piece |
| Opening Angle | 105° |
| Hinge Cup Diameter | 35mm |
| Cup Depth | 11.5mm |
| Door Thickness Fit | 14-18mm |
| Door Drilling Size | 3-5mm |
| Accessory | Self-tapping screw / Euro screw / M10 rubber plug |
