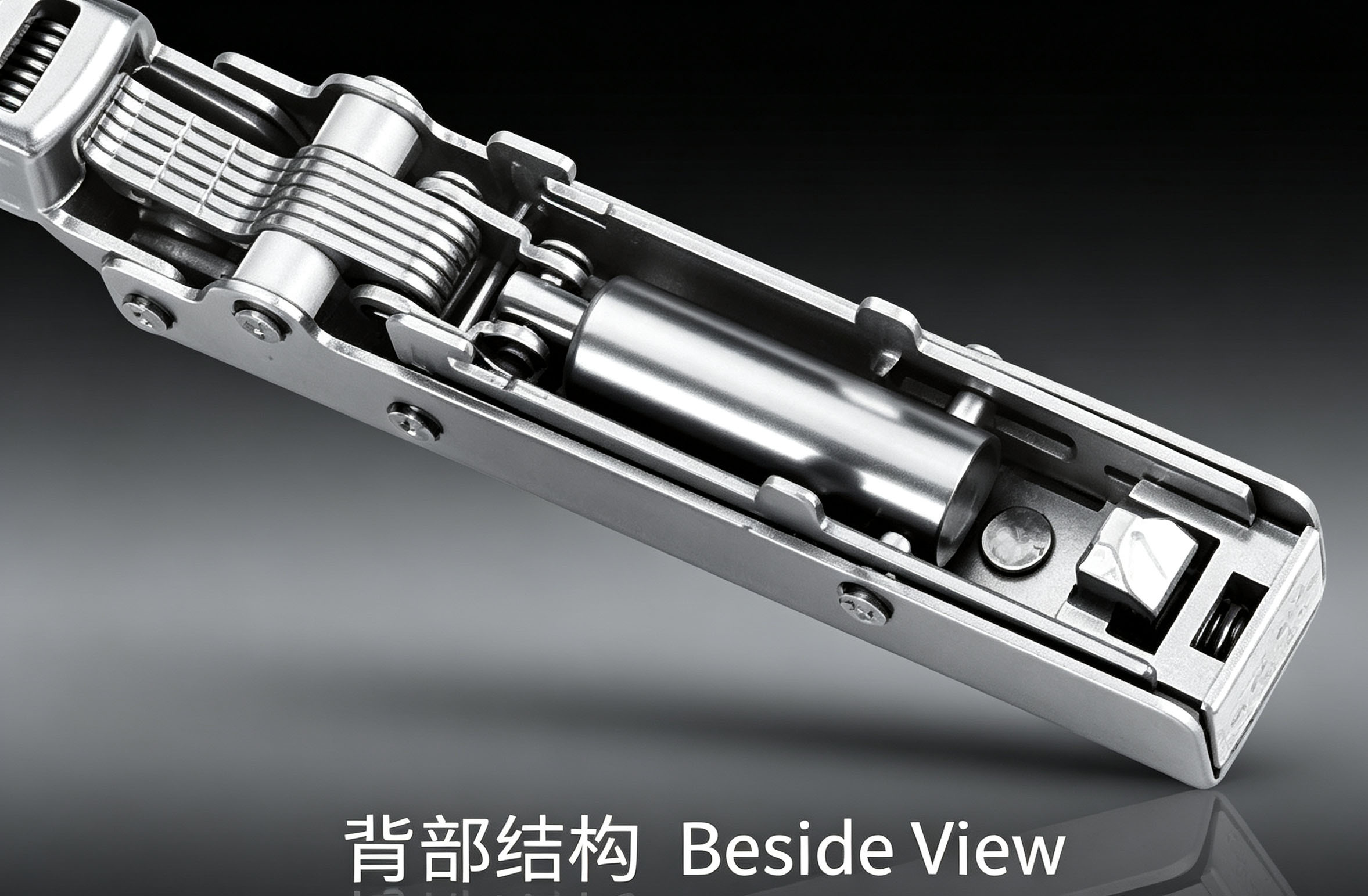

FB108 Series 3D Hydraulic Clip-on Hinge
105g heavy duty soft close hinge, stable damping performance for standard cabinet
| Material | Cold Rolled Steel, Nickel Plated |
| Net Weight | 105g per piece |
| Opening Angle | 105° |
| Hinge Cup Diameter | 35mm |
| Cup Depth | 11.5mm |
| Door Thickness Fit | 14-18mm |
| Door Drilling Size | 3-5mm |
| Overlay Option | Full / Half / Insert |
